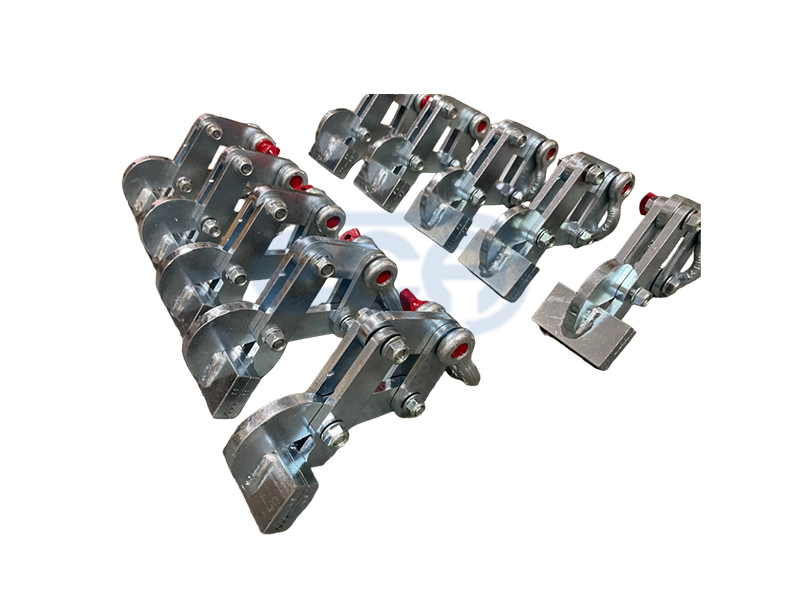

Pull Pliers

A tension plier is a type of tool with clamping and tension-applying functions, widely used in various fields such as mechanical maintenance, construction, cable installation, and material testing. Its core function is to exert directional tension on the target object through the firm clamping of its jaws, realizing operations like part disassembly, cable pulling, and material testing. With precise force control and stable clamping performance, it has become a key tool in various scenarios requiring "tension operations".

Structural Composition

The basic structure of a tension plier mainly includes the following core components:

Jaws: The core working part of the tool, usually designed with non-slip serrations. Some professional models are equipped with replaceable jaws of different specifications (such as flat jaws, pointed jaws, and curved jaws) to adapt to workpieces of different shapes and materials, ensuring no slipping and no damage to the workpiece surface during clamping.

Transmission Mechanism: A key part connecting the jaws and the handle, commonly available in lever-type, gear-type, or hydraulic structures. It amplifies the force exerted by the user on the handle and converts it into strong clamping force and tension of the jaws, improving work efficiency.

Handle: Mostly adopting an ergonomic design, the surface may be covered with a non-slip rubber sleeve, which not only enhances grip comfort but also improves stability during operation. The handles of some high-voltage or heavy-duty tension pliers are equipped with insulating or impact-proof protective layers to ensure safety in use.

Auxiliary Components: Professional-grade tension pliers may be equipped with a tension adjustment knob (for controlling clamping force) and a locking device (to fix the position after clamping and avoid loosening). Some tension pliers for testing also integrate a force display instrument to feedback the applied tension data in real time.

Working Principle

The core working principle of a tension plier lies in "force transmission and amplification":

During operation, place the target object (such as parts, cables, test samples) in the appropriate position of the jaws, and start the transmission mechanism by closing the handle;

Based on the lever principle, gear meshing principle, or hydraulic boosting principle, the transmission mechanism amplifies the manual force at the handle and converts it into high-intensity clamping force of the jaws on the object, ensuring the object does not fall off during force application;

After the clamping force is stabilized, continuously apply directional tension to the handle (or use the tool's own tension output structure) to transmit the tension to the target object, thereby achieving preset work objectives such as disassembly, pulling, and tensile testing.

For models with a locking device, after reaching the required clamping state, the locking function can be activated to free hands for subsequent tension operations; after the operation is completed, unlock the device to release the jaws.

Types

According to the usage scenarios, power sources, and functional characteristics, tension pliers are mainly divided into the following categories:

Manual Tension Pliers

The most basic and widely used type, relying on manual operation of the handle for power. It has a simple structure, small size, strong portability, and does not require external energy sources.

Common subdivided models include: ordinary mechanical tension pliers (suitable for daily part disassembly and small cable pulling) and precision tension pliers (with high-precision jaws, used for operations on small precision parts).

Advantages: low cost and flexible operation; Disadvantages: limited tension output, not suitable for heavy-duty or high-intensity work scenarios.

Hydraulic Tension Pliers

With a hydraulic system as the power source, it achieves ultra-large tension output through the pressure transmission of hydraulic oil, belonging to heavy-duty work tools.

Mainly used in construction projects (such as steel bar pulling and fixing), large mechanical maintenance (such as heavy part disassembly), bridge construction, and other scenarios.

Advantages: strong tension, high work efficiency, and capable of handling high-load tasks; Disadvantages: large size, heavy weight, poor portability, and some models require external hydraulic equipment.

Electric Tension Pliers

Driven by a motor to drive the transmission mechanism, it can realize automatic or semi-automatic tension operations, and some high-end models support precise adjustment of tension parameters.

Suitable for large-scale operations (such as batch cable pulling), high-precision tension control scenarios (such as electronic component assembly), and material testing fields (such as small material tensile testing).

Advantages: labor-saving operation, stable tension, and high precision; Disadvantages: dependent on power supply (battery or municipal electricity) and relatively high maintenance costs.

Specialized Tension Pliers

Designed for specific industry scenarios with highly subdivided functions:

Cable Tension Pliers: Jaws adapted to the shape of cables, used for cable pulling and fixing in power engineering;

Tension Pliers for Testing: Integrating force sensors and display devices, used for precise application and measurement of tension in material mechanics testing;

Auto Repair-Specific Tension Pliers: Designed for the structure of auto parts, used for disassembling stubborn bearings, bushings, and other components.

Specifications

The specification parameters of tension pliers are mainly divided according to usage scenarios and functional requirements, with core parameters including:

Tension Range: The most critical specification indicator. Manual models usually range from 50N to 500N, hydraulic models can reach several tons or even tens of tons, and electric models cover multiple ranges such as 100N to 5000N depending on the model. It should be selected according to the tension required for the operation.

Jaw Size: Expressed by the maximum opening width of the jaws, with a common range of 5mm to 50mm. Some adjustable models support multi-gear opening to adapt to workpieces of different sizes.

Overall Size and Weight: Manual portable models have a total length of mostly 150mm to 300mm and a weight of 0.5kg to 2kg; hydraulic or large electric models can have a total length of more than 500mm and a weight of over 10kg. It should be selected according to the work space and portability requirements.

Accuracy Class: Mainly for testing-type tension pliers, usually expressed by the range of force measurement error (such as ±1% FS, ±0.5% FS). The higher the accuracy, the more suitable it is for precision testing scenarios.

Materials

The material of tension pliers directly affects their strength, wear resistance, and service life. The materials of core components are as follows:

Jaw Material: Mostly high-carbon steel, chrome-vanadium steel, or alloy steel, which undergoes quenching treatment, featuring high hardness and strong wear resistance, ensuring stability and durability during clamping. Some precision jaws adopt stainless steel material to avoid rust and reduce damage to precision workpieces.

Plier Body and Transmission Mechanism Material: The main structure is mostly high-quality alloy steel or cast iron, balancing strength and rigidity, and can withstand large forces during operation without deformation. The hydraulic cylinder body of hydraulic models is usually made of high-strength aluminum alloy or carbon steel to ensure sealing performance and pressure resistance.

Handle Material: The main body is of metal structure, and the surface is covered with TPR non-slip rubber or engineering plastic, which not only improves grip comfort but also plays the role of insulation and corrosion resistance.

Features

Practical Functions: It corely has dual functions of clamping and tension application, which can quickly solve various work needs requiring directional tension. Some multi-functional models can also take into account auxiliary functions such as cutting and extrusion, adapting to multi-scenario use.

Efficient Operation: By amplifying the force through the transmission mechanism, compared with direct manual pulling, it can significantly save manpower and improve work efficiency. Especially hydraulic and electric models can greatly reduce the labor intensity of high-intensity operations.

Strong Adaptability: Different types and specifications of tension pliers can cover various work objects from precision electronic components to heavy mechanical parts, and the multi-specification design of jaws further expands the adaptation range.

Safety and Stability: Equipped with non-slip jaws, locking devices, insulating protection, and other structures, it can effectively avoid risks such as workpiece falling off and operator injury during operation. Some professional models also meet industry safety standards (such as insulation standards for electrical operations).

Precise Control: High-end electric and testing models can realize precise adjustment and real-time monitoring of tension, meeting the strict requirements for force in precision operations and testing scenarios.
