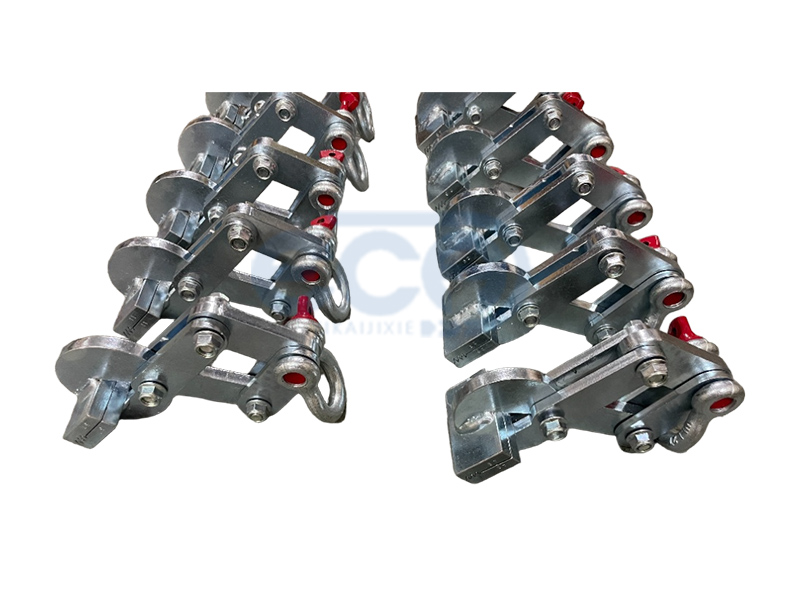

Tension pliers are a type of tool with both clamping and tension-applying functions, widely used in various fields such as mechanical maintenance, construction, cable installation, and material testing. Their core role is to exert directional tension on target objects through the firm clamping of the jaws, enabling operations like part disassembly, cable pulling, and material testing. With precise force control and stable clamping performance, they have become key tools in various scenarios requiring "tension operations".

Structural Composition

The basic structure of tension pliers mainly includes the following core components:

Jaws: The core working part of the tool, usually designed with non-slip serrations. Some professional models are equipped with replaceable jaws of different specifications (such as flat jaws, pointed jaws, and curved jaws) to adapt to workpieces of different shapes and materials, ensuring no slipping and no damage to the workpiece surface during clamping.

Transmission Mechanism: A key part connecting the jaws and the handle, commonly available in lever-type, gear-type, or hydraulic structures. It amplifies the force exerted by the user on the handle and converts it into strong clamping force and tension at the jaws, improving work efficiency.

Handle: Mostly ergonomically designed, the surface may be wrapped with a non-slip rubber sleeve to enhance grip comfort and operational stability. Handles of some high-pressure or heavy-duty tension pliers are equipped with insulating or impact-resistant protective layers to ensure safety during use.

Auxiliary Components: Professional-grade tension pliers may be equipped with a tension adjustment knob (for controlling clamping force) and a locking device (to fix the position after clamping and prevent loosening). Some tension pliers for testing also integrate a force display instrument to provide real-time feedback on the applied tension data.

Working Principle

The core working principle of tension pliers lies in "force transmission and amplification":

During operation, place the target object (such as parts, cables, test samples) in the appropriate position of the jaws, and activate the transmission mechanism by closing the handle.

Based on the lever principle, gear meshing principle, or hydraulic boosting principle, the transmission mechanism amplifies the manual force at the handle and converts it into high-intensity clamping force on the object by the jaws, ensuring the object does not fall off during force application.

After the clamping force stabilizes, continuously apply directional tension to the handle (or use the tool's own tension output structure) to transmit the tension to the target object, thereby achieving preset operational goals such as disassembly, pulling, and tensile testing.

For models with a locking device, after reaching the required clamping state, the locking function can be activated to free hands for subsequent tension operations; after the operation is completed, unlock the device to release the jaws.

Types, Specifications

The specification parameters of tension pliers are mainly divided according to usage scenarios and functional requirements, with core parameters including:

Tension Range: The most critical specification indicator. Manual models typically range from 50N to 500N, hydraulic models can reach several tons or even dozens of tons, and electric models cover multiple ranges such as 100N to 5000N depending on the model. The selection should be based on the tension required for the operation.

Jaw Size: Expressed by the maximum opening width of the jaws, the common range is 5mm to 50mm. Some adjustable models support multi-gear openings to adapt to workpieces of different sizes.

Overall Size and Weight: Portable manual models usually have an overall length of 150mm to 300mm and a weight of 0.5kg to 2kg; hydraulic or large electric models can have an overall length of over 500mm and a weight exceeding 10kg. The selection should consider the working space and portability needs.

Accuracy Class: Mainly for testing-type tension pliers, usually expressed by the range of force measurement error (such as ±1% FS, ±0.5% FS). Higher accuracy makes them suitable for more precise testing scenarios.

Material

The material of tension pliers directly affects their strength, wear resistance, and service life. The materials of core components are as follows:

Jaw Material: Mostly high-carbon steel, chrome-vanadium steel, or alloy steel, which undergoes quenching treatment to achieve high hardness and wear resistance, ensuring stability and durability during clamping. Some precision jaws adopt stainless steel to avoid rust and reduce damage to precision workpieces.

Clamp Body and Transmission Mechanism Material: The main structure is mostly high-quality alloy steel or cast iron, balancing strength and rigidity to withstand large forces during operation without deformation. The hydraulic cylinder of hydraulic models is usually made of high-strength aluminum alloy or carbon steel to ensure sealing performance and pressure resistance.

Handle Material: The main body is of metal structure, with the surface wrapped in TPR non-slip rubber or engineering plastic, which not only improves grip comfort but also provides insulation and corrosion resistance.

Features

Practical Functions: Core functions include both clamping and tension application, which can quickly meet various operational needs requiring directional tension. Some multi-functional models can also perform auxiliary functions such as cutting and extrusion, adapting to multiple scenarios.

Efficient Operation: By amplifying force through the transmission mechanism, they significantly save labor and improve work efficiency compared to direct manual pulling. Especially hydraulic and electric models can greatly reduce labor intensity in high-intensity operations.

Strong Adaptability: Different types and specifications of tension pliers can cover various operation objects from precision electronic components to heavy machinery parts. The multi-specification design of jaws further expands the adaptation range.

Safety and Stability: Equipped with structures such as non-slip jaws, locking devices, and insulating protection, they can effectively avoid risks such as workpiece falling off and operator injury during operation. Some professional models also comply with industry safety standards (such as insulation standards for electrical operations).

Precise Control: High-end electric and testing models can achieve precise tension adjustment and real-time monitoring, meeting the strict force requirements of precision operations and testing scenarios.
