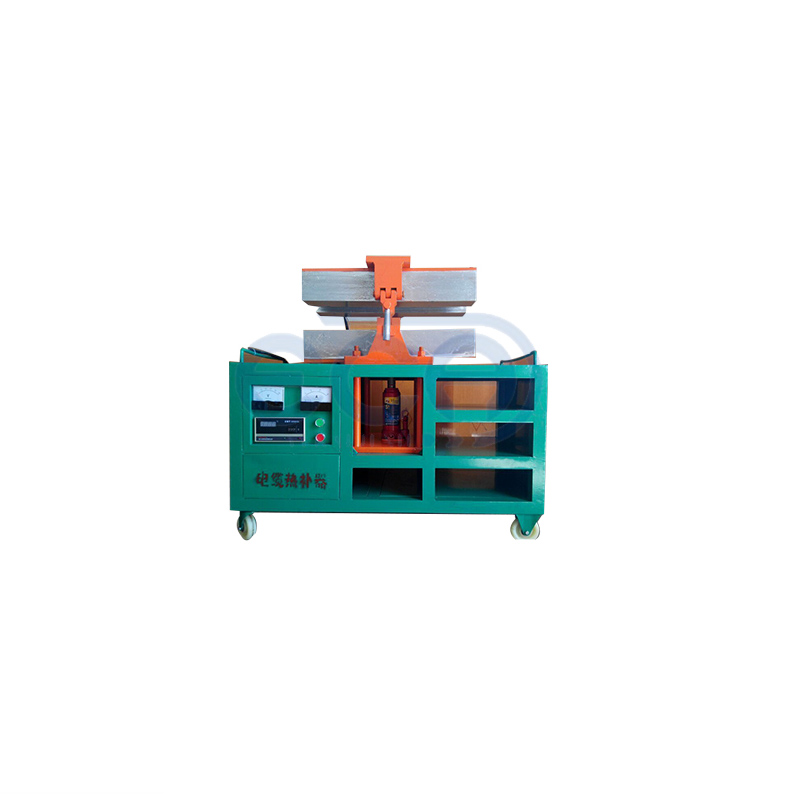

Steel Cable Vulcanizing Machine Hot Patcher

The box body and mold of the steel cable vulcanizing machine heat patcher are made of alloy aluminum. It adopts hydraulic clamping and is equipped with temperature indication, automatic temperature control and alarm functions. It features labor saving, energy saving, reliable operation, high work efficiency and easy maintenance, which can ensure the repair quality.

The cable repaired by the steel cable vulcanizing machine heat patcher has a bright, flat appearance, firm bonding, pressure resistance and tight sealing. Therefore, this heat patcher is an advanced heat repair equipment in China currently. The heat patcher is mainly composed of a bracket, an electrical system, a hydraulic system and a surface control panel. The hydraulic system is mainly composed of a hydraulic cylinder, a piston, a valve and a pressure rod, which realizes the lifting and pressurization of the mold and ensures the pressure required for the heating and bonding process. The bracket is the main component of the heat patcher, welded by section steel, and equipped with a traveling mechanism, a toolbox and a counterweight iron to form a complete integrated machine platform, which is easy to move during operation. The electrical heating system is assembled separately and controlled uniformly, with temperature setting, timing, light and electric bell alarm devices, forming excellent adjustment and control performance.

Operating Instructions for Steel Cable Vulcanizing Machine Heat Patcher:

Use a screwdriver to adjust the mechanical zero point of the temperature indicator to the ambient temperature scale, and set the temperature-setting indicator needle to the temperature scale required for rubber patching.

Adjust the timing switch. The timing switch is equipped with "ON" (start), "OFF" (stop) and time scales. If timing is not needed, turn the switch knob to the "ON" position. If timing is required, rotate the switch knob clockwise to the desired position and then turn it back to the selected time scale.

If the electric bell alarm is needed, turn the knob to the "ON" position; if not, turn it to the "OFF" position.

Turn on the power switch, and the electrical heating system starts to heat up, with the green light on at this time. When the temperature rises to the required value, the surface relay disconnects, so that the AC contactor cuts off the power supply of the heating system, and then the timing switch also disconnects (it disconnects when timing is set, and remains connected when timing is not set). At this time, the red light is on and the electric bell rings, and the operator should turn off the electric bell switch in time.
