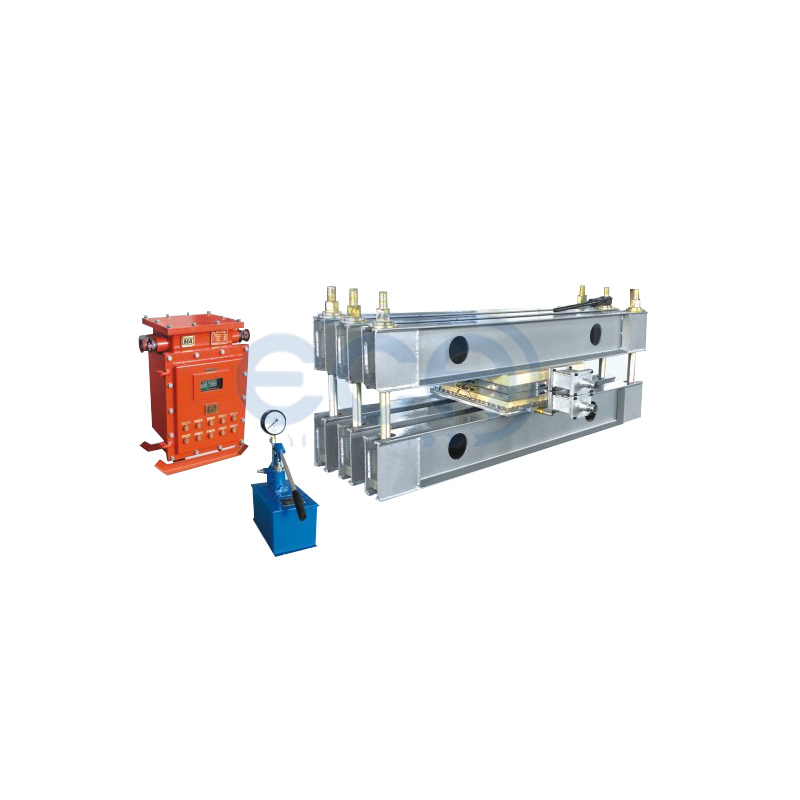

Type XBD-2 Mine Flame-proof Electric Heating Mender
The XBD-2 Repairer is primarily used for patching small-area local damages on conveyor belts. Its main components are constructed from aluminum alloy. The repairer's structure consists of three main parts: an electric heating system, a pressure device, and a frame.
It is a portable, lightweight vulcanizing repair device designed for maintaining conveyor belts. This equipment adopts an explosion-proof electric heating system and a hydraulic pressure device, making it suitable for repairing and maintaining various types of belts, such as fabric canvas, nylon, polyester, and steel cord belts. It features a compact size, light weight, easy assembly/disassembly, along with rapid heating, uniform temperature distribution, and reliable operation.
No. | Parameter | Unit | XBD-1 | XBD-2 |
|---|---|---|---|---|
1 | Vulcanization Repair Temperature | °C | 145 | 145 |
2 | Vulcanization Repair Pressure | MPa | 1.5 | 1.5 |
3 | Heating Plate Warm-up Time | min | < 30 | < 30 |
4 | Vulcanization Repair Time | min | Dependent on belt thickness | < 30 |
5 | Operating Voltage | V | 660 | 660 |
6 | Total Power | kW | 6.8 | 6.8 |
7 | Heating Plate | |||
7.1 | Power | kW | 3.4 | 3.4 |
7.2 | Current | A | 3 | 3 |
7.3 | Planar Dimensions | mm | 1098 x 350 | 350 x 350 |
8 | Hydraulic Pressure Plate | |||
8.1 | Overall Dimensions | mm | 1098 x 370 | 1098 x 370 |
8.2 | Weight | kg | 51 | 25 |
9 | Number of Frame Bars | pcs | 8 (4 top / 4 bottom) | 2 (1 top / 1 bottom) |
10 | Pressure Test Pump | |||
10.1 | Model | SY-18/40 | SY-18/40 | |
10.2 | Working Pressure | MPa | 4 | 4 |
11 | Control Box | |||
11.1 | Power | kW | 30 | 30 |
11.2 | Voltage | V | 660 | 660 |
