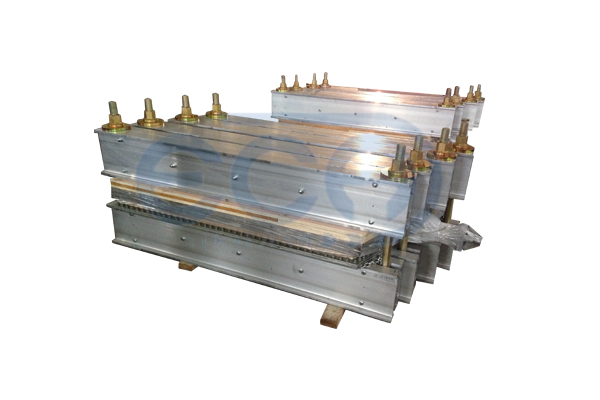

Explosion-Proof Vulcanizer​

share
copy Link
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
The flame-proof vulcanizer adopts an explosion-proof electric heating structure and uses a water pressure plate as the pressing device. The vulcanizer's heating plates are constructed from high-strength aluminum alloy clad with SUS304 stainless steel. The water cooling system utilizes SUS304 stainless steel water cooling plates, characterized by rapid cooling speed. The entire unit features a compact size, light single-component weight, and easy disassembly/reassembly, making it suitable for manual handling.
18021199588
Detail

The flame-proof vulcanizer adopts an explosion-proof electric heating structure and uses a water pressure plate as the pressing device. The vulcanizer's heating plates are constructed from high-strength aluminum alloy clad with SUS304 stainless steel. The water cooling system utilizes SUS304 stainless steel water cooling plates, characterized by rapid cooling speed. The entire unit features a compact size, light single-component weight, and easy disassembly/reassembly, making it suitable for manual handling.


Powered by 380V or 660V three-phase electricity and primarily constructed from lightweight aluminum alloy, the machine is compact, features light individual component weight, and is easy to disassemble. It also provides rapid heating, uniform temperature distribution, and high thermal efficiency. This product is suitable for on-site belt splicing in industries such as metallurgy, power plants, ports, electrical engineering, and metal mines. The joints created by this machine are not only smooth and nearly identical to the original belt but also help reduce drum wear and extend the service life of both the conveyor system and the rubber belt.

Technical Parameter Table of LBD Series Electric Heating Explosion-proof Vulcanizer
No.
Parameter Name
Unit
LBD-800
LBD-1000
LBD-1200
LBD-1400
LBD-1600
LBD-1800
LBD-2000
LBD-2200
1
Belt Width Specification for Splicing
mm
800
1000
1200
1400
1600
1800
2000
2200
2
Vulcanization Temperature
°C
145
145
145
145
145
145
145
145
3
Vulcanization Heat-up Time
min
≤50
≤50
≤50
≤50
≤50
≤50
≤50
≤50
4
Vulcanization Working Pressure
MPa
1.0~2.0
1.0~2.0
1.0~2.0
1.0~2.0
1.0~2.0
1.0~2.0
1.0~2.0
1.0~2.0
5
Power Supply Voltage
V
660
660
660
660
660
660
660
660
6
Total Power
kW
17
19
23
26
28
32
35
38
7
Heating Plate
Effective Working Surface (L×W)
mm
950×970
1150×970
1350×970
1550×970
1750×970
(1100+850)×970
(1100+1050)×970


Power
kW
8.5
9.5
11.5
13
14
9.2+9.2
9.2+9.2


Line Current
A
7.43
8.31
10.06
11.37
12.24
8.05+8.05
8.05+8.05


Weight
kg
100
120
140
160
180
110+110
110+110
8
Frame
Quantity
pcs
12
12
12
12
12
12
12


Overall Dimensions (L×W×H)
mm
1250×112×220
1450×112×220
1650×118×250
1850×118×250
2050×128×300
2300×128×300
2550×128×300


Weight per Piece
kg
50
60
75
85
125
135
150
9
Water Pressure Plate
Plate Dimensions (L×W)
mm
950×970
1150×970
1350×970
1550×970
1750×970
1950×970
2150×970


Weight
kg
85
110
120
130
140
150
170
10
Upper Insulation Plate (L×W)
mm
950×970
1150×970
1350×970
1550×970
1750×970
1950×970
2150×970
2350×970
11
Lower Insulation Plate (L×W)
mm
880×900
1080×900
1280×900
1480×900
1680×900
1880×900
2080×900
2280×900
12
Main Unit
Overall Dimensions (L×W×H)
mm
1390×970×790
1590×970×790
1790×970×860
2005×970×860
2225×970×900
2450×970×900
2700×970×900


Total Weight
kg
1000
1250
1500
180
