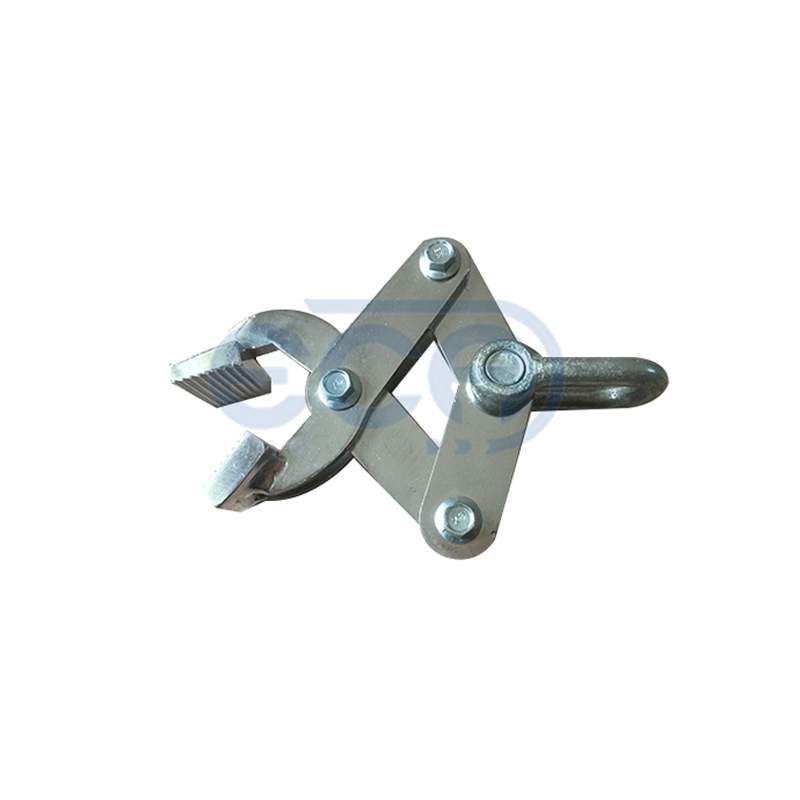

Wire Stripper

A wire stripper comprises a clamp hook, a handle, a rotating shaft, and a cutter body. The clamp hook and the handle are rotatably connected via the rotating shaft. A clamping cavity is formed in the middle of the clamp hook. The handle includes a rotating part and a clamping hoop part that are connected together, with the clamping hoop part located in the clamping cavity. A blind hole is arranged in the clamping hoop part, and the cutter body is fittingly installed in the blind hole, with the upper end of the cutter body positioned in the clamping cavity.

When the wire stripper is in use, the cable is clamped in the clamping cavity and the clamping hoop part. Rotate the handle to make the cutter body cut the cable insulation layer. Depending on the cutting condition of the cable insulation layer, rotate the handle one or more times. After the circumferential cutting of the cable insulation layer is completed, pull the wire stripper along the axial direction of the cable to strip off the cable insulation layer. The cable wire stripper has a simple structure, is easy to use and carry, significantly improves the efficiency of stripping the cable insulation layer, and ensures a neat and aesthetically pleasing cable cross-section, which is conducive to promotion.

Technical Introduction

In the process of cable laying, removing the cable insulation layer is a frequently performed basic operation. The conventional method is that electricians use electrician's knives or utility knives for cable stripping. This operation results in high labor intensity and long time consumption for electricians. Moreover, different cable models have different outer skin thicknesses, making it difficult to grasp the force and control the angle of the blade during stripping. Accidents such as hand injuries are likely to occur if there is a slight mistake.

The technical problem to be solved by the wire stripper technology is to provide a product with a simple structure. The technical solution adopted to solve this technical problem is as follows: The cable wire stripper comprises a clamp hook, a handle, a rotating shaft, and a cutter body. The clamp hook and the handle are rotatably connected via the rotating shaft. A clamping cavity is formed in the middle of the clamp hook. The handle includes a rotating part and a clamping hoop part that are connected together, with the clamping hoop part located in the clamping cavity. A blind hole is arranged in the clamping hoop part, and the cutter body is fittingly installed in the blind hole, with the upper end of the cutter body positioned in the clamping cavity.

Further, the clamping cavity is square in shape, and the upper surface of the clamping hoop part is arc-shaped. Further, anti-slip protrusions are arranged on the inner surface of the clamp hook. Further, the cutter body can move up and down in the blind hole.

Further, the wire stripper also includes a cylindrical knob. The surface of the cylindrical knob is provided with threads, and the clamping hoop part is provided with a mounting hole that communicates with the blind hole. A screw rod is arranged on the side of the cutter body. The cylindrical knob is installed in the mounting hole and is threadedly matched with the screw rod, so that the cutter body can move up and down in the blind hole. Further, the cross-section of the upper end of the cutter body is triangular.
