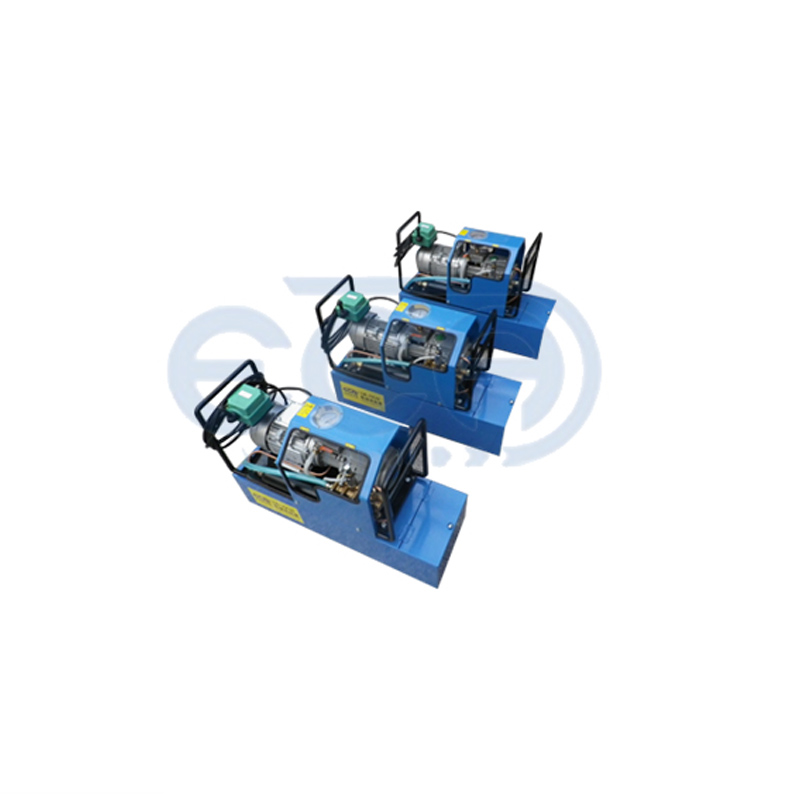

Electric Hydraulic Pump with Water Tank
During maintenance or commissioning, special inspections are required. If equipment wear, corrosion, degradation or damage is found during visual inspection, non-destructive testing (NDT), thread gauge inspection or other processes, pressure testing must be stopped immediately.
Maintenance or Commissioning of Electric Water Pressure Pump with Water Tank
During maintenance or commissioning, special inspections are required. If equipment wear, corrosion, degradation or damage is found during visual inspection, non-destructive testing (NDT), thread gauge inspection or other processes, pressure testing must be stopped immediately.
Inspect all pressure test hoses, pumps and pressure test manifolds to ensure their pressure ratings match.
Use a recorder with an appropriate range to record all pressure values, and the recorder used must have a calibration certificate. Pressure test cards should be retained as part of the maintenance records.
Specific Parameters and Usage of Electric Water Pressure Pump with Water Tank
Specially designed for belt vulcanizers, this pump is a three-cylinder plunger pump driven by a single-phase or three-phase motor. It features a compact structure, small size, light weight, reliable operation and easy maintenance, making it a portable electric water pressure pump. During use, after connecting the power supply, first check if the pump has jamming or abnormal noise. Connect the high-pressure pipe, and connect the end of the pipe with the quick connector to the quick connector at the water outlet of this pump.
Connect the other end to the inlet of the water pressure plate (to connect the quick connector: axially push the knurled sleeve of the high-pressure pipe, insert the male connector of the quick connector into the female connector, then release the sleeve, and it will be automatically and firmly connected). When using tap water, sleeve the water inlet pipe on the tap and tighten the nut.
Parameters of LB-7x10 Electric Water Pressure Pump
Rated discharge pressure: 4MPa
Theoretical flow rate: 8L/min
Pump speed: 2800r/min
Working medium: clean water
Matching motor: 1.1KW three-phase motor (50Hz, 380V)
Lubricating oil: 0.87L of No. 30 or No. 40 engine oil
Equipment weight: 23kg
Overall dimensions (Length × Width × Height): 560×250×395mm
