Usage of Cable Heat Mender

Today, we have compiled relevant information about the cable heat mender for everyone to explore.

The cable heat mender features a body and mold made of aluminum alloy, with hydraulic clamping. It is equipped with temperature indication, automatic temperature control, and an alarm system. It is labor-saving, energy-efficient, reliable, efficient, easy to maintain, and ensures high repair quality. After repair with the cable heat mender, the cable surface is smooth, even, firmly bonded, and pressure-resistant with good sealing. Therefore, this cable heat mender is currently one of the most advanced heat repair devices in China.

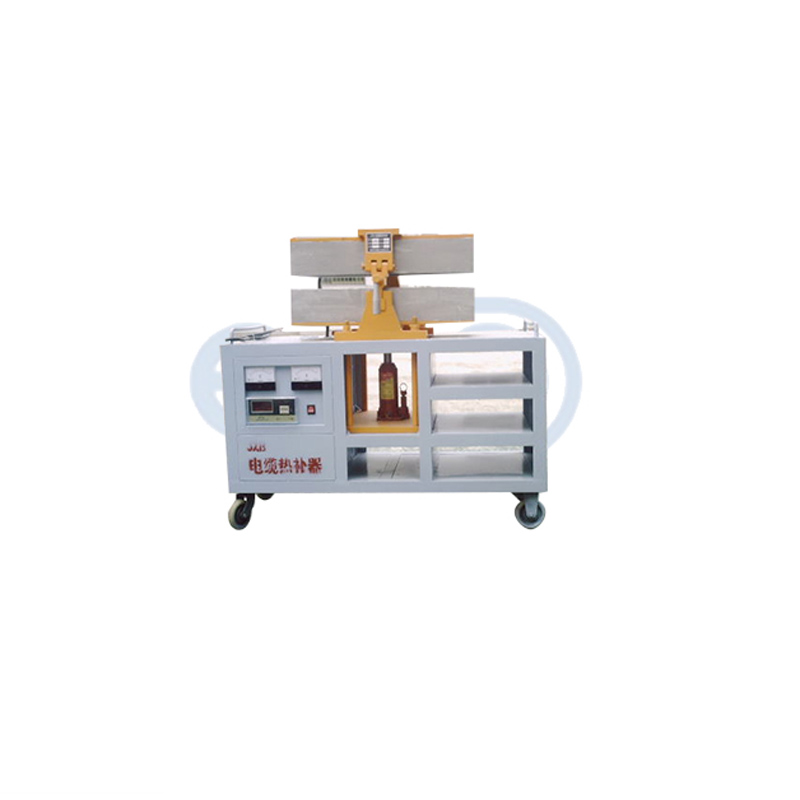

The heat mender mainly consists of a frame, an electrical system, a hydraulic system, and an instrument control panel. The hydraulic system, comprising hydraulic cylinders, pistons, valves, and pressure rods, enables mold lifting and pressing to provide the necessary pressure during the heating and bonding process. The frame, the main structure of the heat mender, is welded from section steel and includes moving mechanisms, a tool box, and counterweights, forming a complete and integrated unit that is easy to move during operation. The electrical heating system is assembled separately but controlled uniformly, featuring temperature setting, timing, indicator lights, and an alarm bell for precise adjustment and control.

Instructions for Use:

Use a screwdriver to adjust the mechanical zero point of the temperature indicator to the ambient temperature scale. Then, set the temperature indicator needle to the required temperature scale for the bonding process.

Adjust the timer switch. The timer switch has "ON" for start, "OFF" for stop, and a time scale. If timing is not required, turn the switch knob to the "ON" position. If timing is needed, rotate the knob clockwise to the desired position and then adjust it to the selected time scale.

If an alarm bell is required, turn the knob to the "ON" position. If not, turn it to the "OFF" position.

Turn on the power switch, and the electrical heating system will start to heat up, indicated by the green light. When the temperature reaches the set value, the relay in the indicator will disconnect, cutting off the power to the heating system via the AC contactor. The timer switch will also disconnect at this point (it disconnects only when timing is set; otherwise, it remains connected). The red light will then illuminate, and the alarm bell will ring. The operator should promptly turn off the alarm bell switch.

The above is the compiled information about the cable heat mender. We hope it will be helpful to you.
